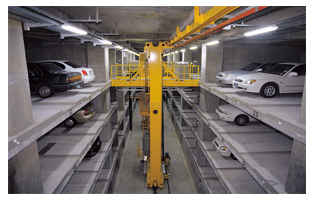

STACKER CAR PARKING SYSTEM

Features quick in-out maneuver by simultaneously moving and lifting the cart while the vehicle wheel is lifted without the pallet

Large parking facility can be installed underground

Parking room is built using a concrete slab structure

Very strong & easy to maintain

Easy monitoring & checking of operation status

Lift installed along the entry module based on the site condition & level of entrance

Stackers are aimed to double the parking space above ground / basement type parking.

Special Features

Yellow Pipe Barrier : The Pipe Barrier ensures the driver has reached the end of the pallet and he leaves the car with a happy mind that his car is safely parked.

Slow-Mo : The Slow-Mo feature ensures the load transferred to the hydraulic motor is kept to the minimum, while the pallet is in operation, and by doing so the longevity of the hydraulics is increased.

Cross Beam Vehicle Sensor : The sensor makes sure the car parked above does not move downwards when there is car parked below, even if it is signaled (knowingly or unknowingly) by anyone to come down.

Indication Lamps and Buzzers : The Lamp in RED and the buzzer will TURN ON during operation of the system, so as to make it visually transparent to people around the parking area to notice there is an operation going on.

Product Description

Our efficient teams work in tandem with each other to help us design and develop the most favorable and feasible solution to the car parking woes faced by the clients. The Stack Car Parking System offered by us intend to utilize the existing space in such a manner that more number of cars can be parked at a time. It works on the principle of horizontal lifting and lowering. Its single post saves time and offers flexibility when installed in basements and garages. It enables the car to roll on and roll off from either side conveniently. It facilitates quick and easy installation. It can also be dismantled and relocated. Our parking system is remote operated and incurs low maintenance costs.

System Specification

Pit size (mm)	Depth :4200	Width:2600??N+400	Length:5250
Vehicle Dimensions	Less than 5000??1850??1550 mm
Lifting Weight	Less than 1700KG
Lifting speed	2.5m/min
Lifting Power	3.7KW
Driving Mode	Chain
Operation Mode	Button or IC Card
Power	380V/220V 50Hz

Stacker Car Parking System - Download PDF File
